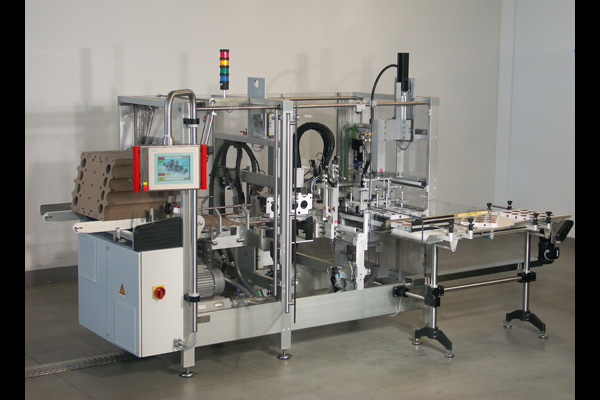

The Somic Carton Erector KA 414 ST/3 was designed for special tray forming applications.

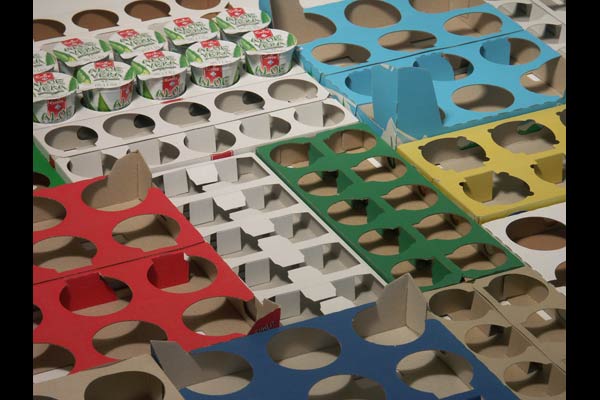

- Low and high trays
- 8-side trays

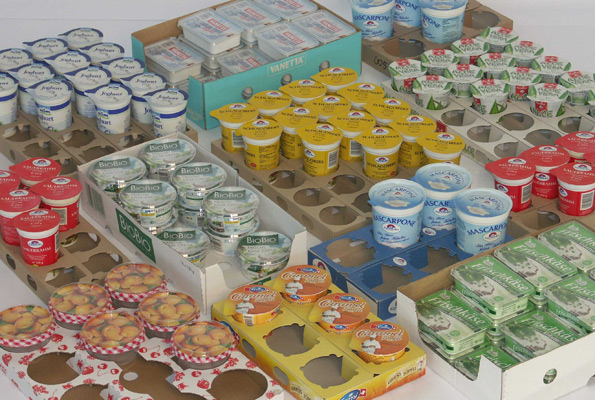

- Trays with individual cup holders
- Conical trays-Stackable trays with suspender straps
- Open trays and cases, with/without top closing
- Glued using hot melt, for added strength
- Mechanical locks are also possible
- Solid board and corrugated
- Closed profile machine frame
- Advanced ELAU servo and controllers
Sequence of functions

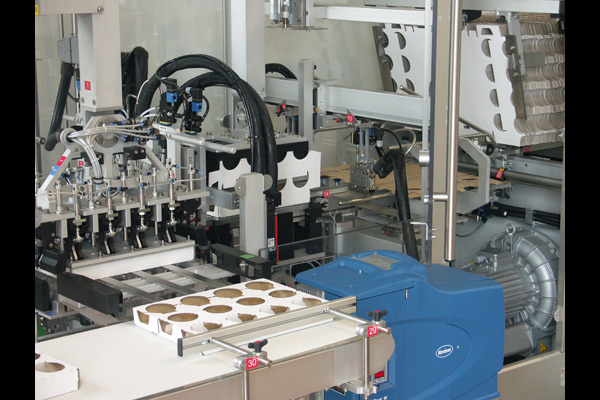

At the first machine station, the flat tray blank is removed from the magazine and placed on the vacuum conveyor. At the second station, the tray is then precisely erected by the folding head and glued with hot melt. At the third station, the perforated sheet that takes the cups is folded and glued. For added strength perforated sheet flaps glued on the tray bottom.
Additional features: Available options:
- Highly accessible - Right or left hand operation
- Ergonomic magazine height - Blank magazine length
- Simple touch panel operation up to 2000 mm (79 in.)
- Fast format changeover - Remote maintenance
- Fixed format adjustments - Specific customer requirements
- Tray stacking device
