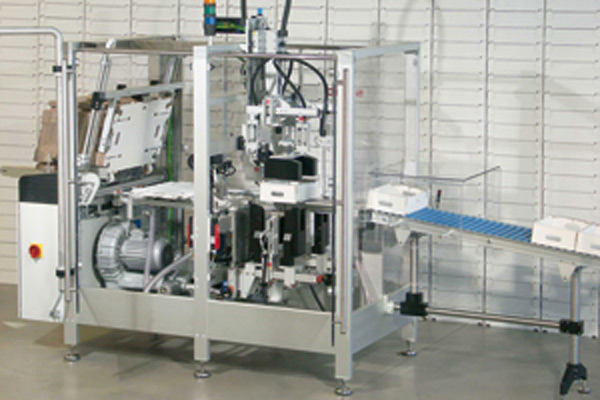

SOMIC Tray erector KA 414-T/2

The SOMIC KA 414-T/2 case erector is fast, compact, and reliable.

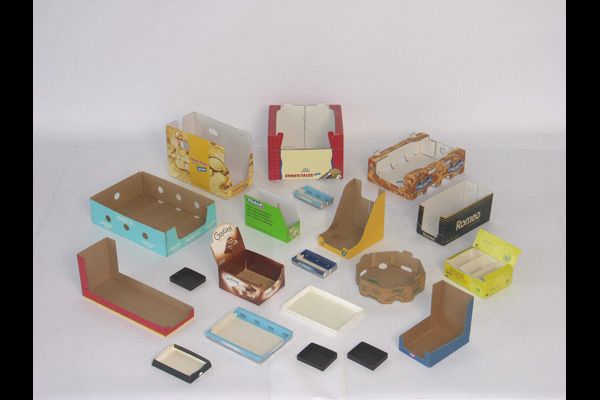

- Open trays and cases, with/without top closing
- Glued using hot melt, for added strength
- Mechanical locks are also possible
- Solid board and corrugated
- Closed profile machine frame
- Advanced ELAU servo and controllers

Tray former sequence of functions:

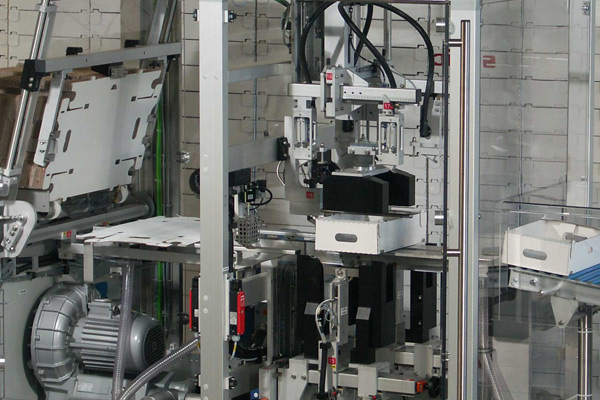

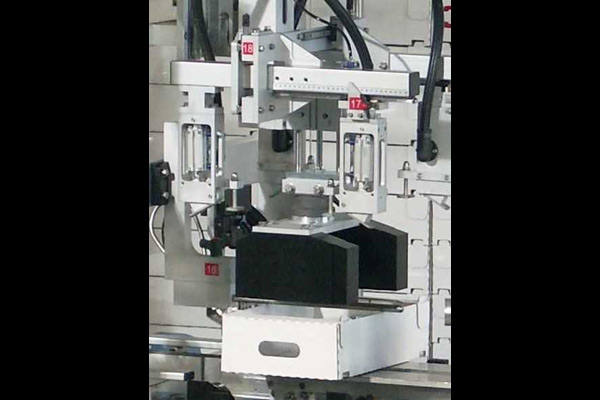

First a flat blank is taken from the blank magazine and placed onto the vacuum conveyor.  As the blank is moving to the second station, hot melt is applied.  At the second station, the blank is positively held, and the case is accurately formed.In the case of a wrap around blank, the lid is left open for loading.



Additional features:                                        Available options:

- Highly accessible                                                                - Right or left hand operation
- Ergonomic magazine height                                             - Blank magazine length
- Simple touch panel operation                                             up to 2000 mm (79 in.)
- Fast format changeover                                                     - Remote maintenance
- Fixed format adjustments                                                 - Specific customer  requirements
                                                                                                  - Tray stacking device



Technical data:

Capacity and Format Range
Capacity
Up to 60 per minute
Case Format Range:

min. L = 140 mm (5.5 in.)

min. W = 80 mm (3.2 in.)

min. H = 20 mm (.8 in.)

max. L = 400 mm (15.8 in.)

max. W = 300 mm (11.8 in.)

max. H = 250 mm (9.8 in.)

Blank Dimensions:

max. L = 700 mm (27.6 in.)

max. W = 850 mm (33.5 in.)

 Higher capacities and special case dimensions on request!
