Somic Lidding Machine DA 414-D/2

For closing filled trays with inside or outside hood and closing filled wrap around cases.

- Glued using hot melt, for added strength
- Mechanical locks are also possible
- Solid board and corrugated
- Closed profile machine frame
- Advanced ELAU servo and controllers

Sequence of functions:

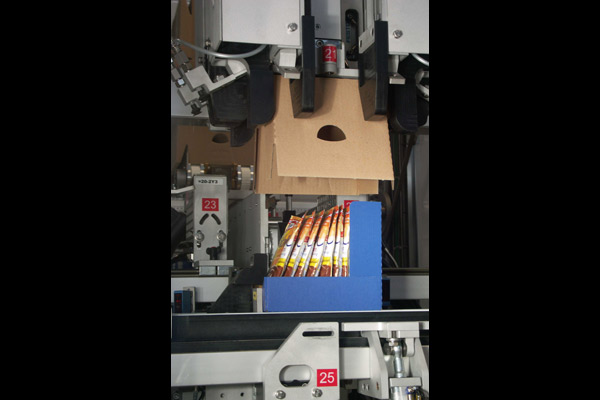

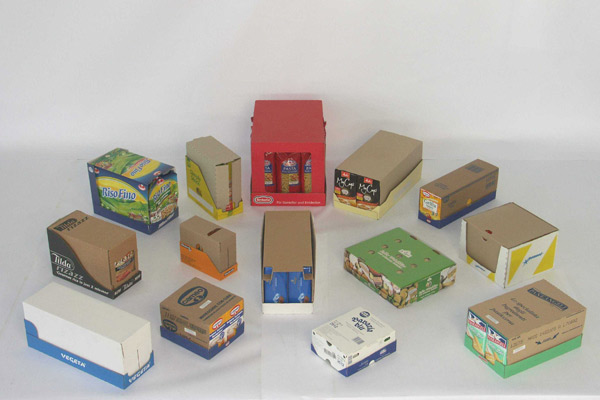

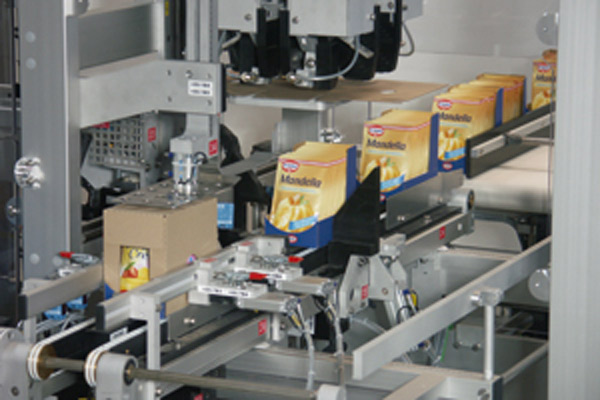

The box coverer can cover filled trays with different shaped inside covers or slip-on covers. Flat shaped covers, shaped and even product high covers can be mounted. Covers and trays can also be joined by hot melt (original closure) or by mechanical closures (click-lock). These machine can also close filled wrap-around cases.

Additional features:                                        Available options:

- Highly accessible                                                                - Right or left hand operation
- Ergonomic magazine height                                             - Blank magazine length
- Simple touch panel operation                                             up to 2000 mm (79 in.)
- Fast format changeover                                                     - Remote maintenance
- Fixed format adjustments                                                 - Specific customer  requirements
                                                                                                  - Tray stacking  device

Technical data:

Capacity and Format Range
Up to 40 per minute
Case Format Range:

min. L = 100 mm (3.9 in.)

min. W = 80 mm (3.2 in.)

min. H = 20 mm (.8 in.)

max. L = 400 mm (15.8 in.)

max. W = 600 mm (23.6 in.)

max. H = 250 mm (9.8 in.)

Blank Dimensions:

max. L = 700 mm (27.6 in.)

max. W = 850 mm (33.5 in.)
