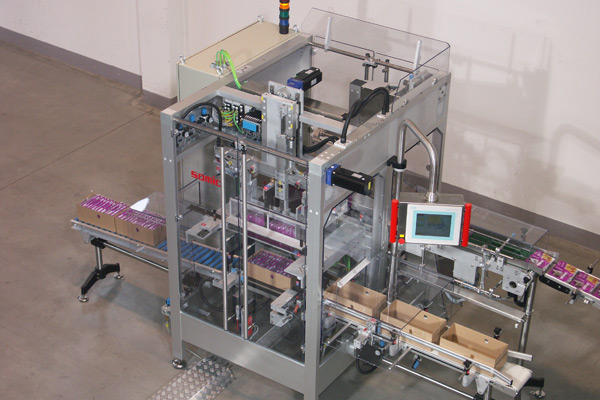

Somic Top Loader EP 414-TL

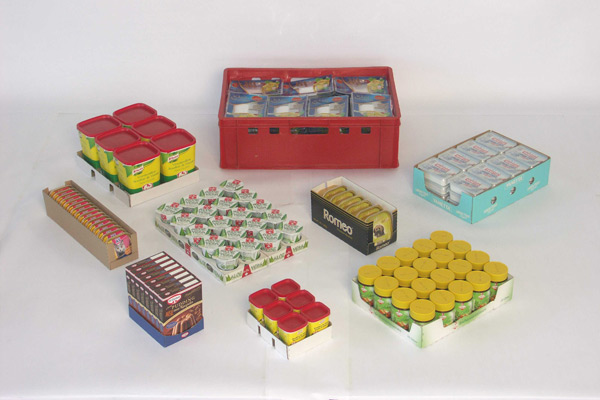

Ideal for filling empty trays, cases, plastic boxes, or work in process (WIP) containers with individual products, entire layers or complete product groupings

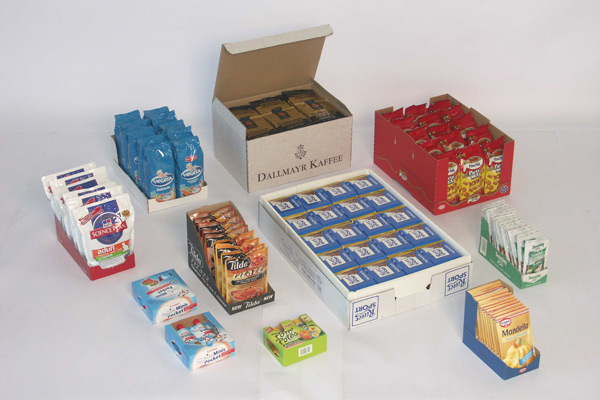

Wide product range including: pouches, bags, folding cartons, cans, jars, blisters, thermoformed tubs, etc.


Horizontal Groupings


The pre-packed products are fed lying flat. Individual products or product layers are inserted into the erected case, in plastic boxes or crates. The robot portal module works with individual pick&place, gripper or suction tools.

Vertical Groupings

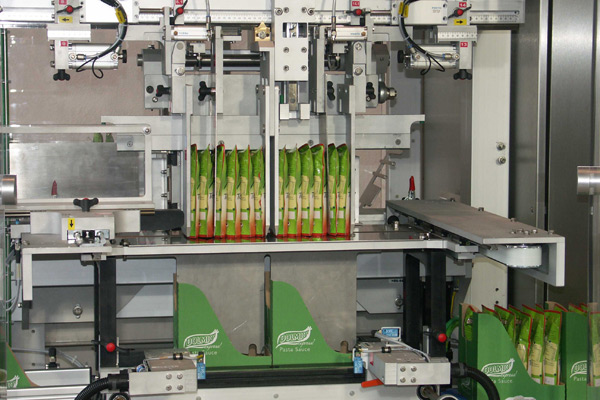

The pre-packed products are individually fed and collated.  The product groupings are inserted into the erected case, plastic box, WIP, etc by top loading.  The robot portal module works with individual gripper tools.


Infeed:                                                                      Collating and Grouping:
- Up to 600 products per minute                         - Single or multi-row
- Standing or laying product                                 - Single or multi-layer
- Narrow side or broad side leading                  - Multiple collation and grouping options

Product Handling:                                                 Container Positioning:
- Pick & Place                                                          - Positive placement
- Rotating and swivel devices                              - Spreading devices, shoes,  and pull-in aids
- Gripper heads                                                      - Precise positioning using individual conveyors
- Always maintain positive control

Additional features:                             Available options:

- Highly accessible                                                 - Right or left hand operation
- Simple touch panel operation                            - Remote maintenance
- Fast format changeover                                      - Specific customer  requirements
- Fixed format adjustments
- CE protective devices
- Frameless Macrolon  doors


Technical data:

Capacity and format range
Capacity: up to 60 insert strokes/min.
(double filling)

(several packages can be filled
in the same time for higher output)

Format range: min. l = 140 mm (5.5 in.)
min. w = 80 mm (3.2 in.)
min. h= 20 mm (0.8 in.)
max. l = 400 mm (15.8 in.)
max. w = 600 mm (23.6 in.)
max. h = 250 mm (9.8 in.)
